Step 7: Identify Primary Inputs

PreviousStep 6: Add a Waste OutputNextStep 8: Traverse The Boundary

Last updated 2 months ago

Input Flows

Inputs are the flows that a system takes in, does work on, and processes in order to create outputs.

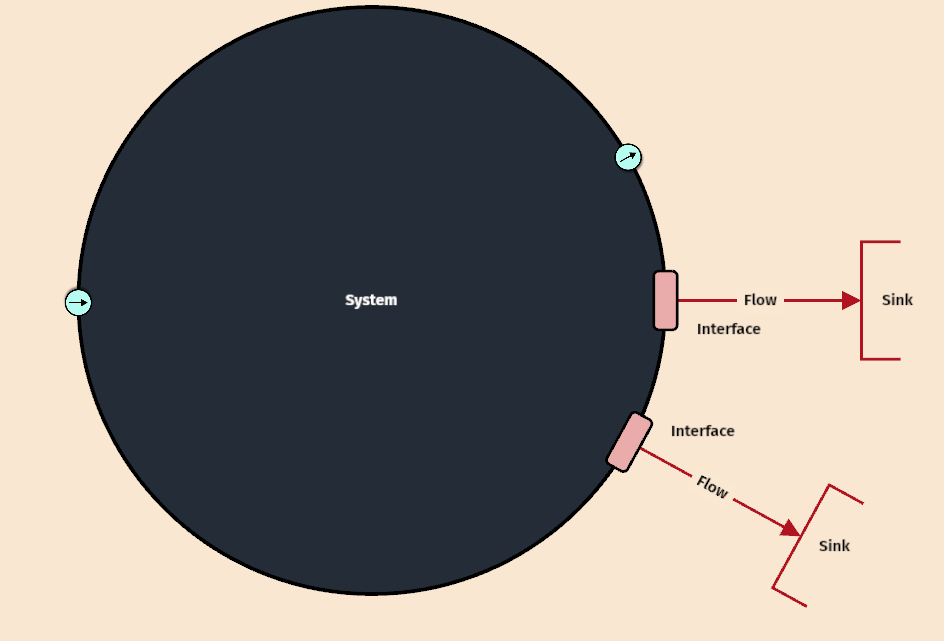

Click the arrow on the left

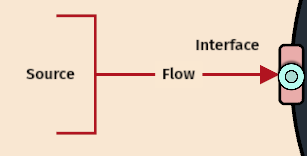

Create the associated interface

Create the associated source
